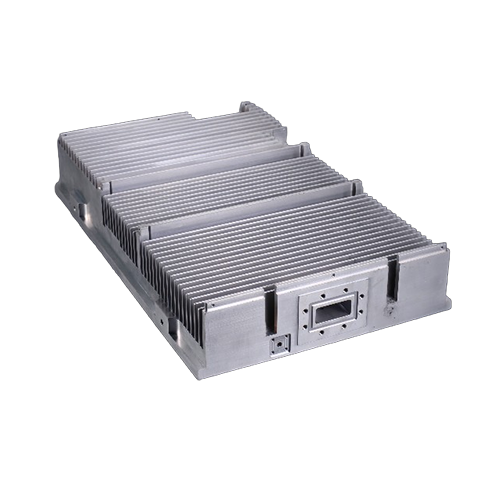

Aluminum Alloy Cavity Processing: High-Precision Machining for Lightweight Innovation

Introduction

In today's fast-evolving industrial landscape, aluminum alloy cavity processing has become a critical manufacturing process across numerous sectors, including aerospace, automotive, electronics, and medical equipment. Known for its combination of lightweight properties, excellent thermal conductivity, and corrosion resistance, aluminum alloy is a preferred material for precision components—especially those involving complex internal geometries and high-accuracy requirements.

This comprehensive guide delves into every aspect of aluminum alloy cavity processing: what it is, why it matters, how it works, what industries rely on it, and how to achieve optimal outcomes. Whether you're a procurement engineer, a product developer, or a precision parts supplier, understanding this process will help you leverage its full potential for high-performance, cost-efficient manufacturing.

What Is Aluminum Alloy Cavity Processing?

Aluminum alloy cavity processing refers to the precision machining of internal cavities within aluminum alloy components. These cavities can be intricate, multi-level, and geometrically complex, serving as integral functional features in a wide variety of applications—from heat sinks and mold cores to sensor housings and engine components.

Unlike surface or external machining, cavity processing demands access to internal dimensions, which often requires advanced 3-, 4-, or 5-axis CNC machining tools, specialized cutting strategies, and tight tolerance controls.

Why Use Aluminum Alloy for Cavity Processing?

Aluminum alloys are widely used in cavity processing because of their advantageous material properties, which include:

• Lightweight strength: High strength-to-weight ratio helps reduce part weight without sacrificing durability.

• Corrosion resistance: Natural oxide layer protects against environmental damage.

• Thermal conductivity: Ideal for heat-dissipating components such as electronics housings and automotive cooling systems.

• Machinability: Compared to steel or titanium, aluminum is easier to cut, reducing tool wear and processing time.

• Recyclability: Environmentally sustainable and cost-efficient through recycling.

Popular grades include 6061, 7075, 2024, and 5052, each offering a unique balance of strength, ductility, and thermal performance for specific engineering requirements.

CNC Machining in Aluminum Alloy Cavity Processing

The backbone of aluminum alloy cavity processing is CNC (Computer Numerical Control) machining, which allows for highly precise and repeatable manufacturing of intricate internal geometries. Key CNC methods include:

1. 3-Axis CNC Milling

A common entry point for cavity machining, this method enables the cutting of relatively simple cavity shapes using linear X, Y, and Z movements.

2. 5-Axis CNC Machining

This advanced method enables simultaneous movement on five axes, allowing for the creation of deep, angled, or compound-angle cavities without repositioning the workpiece. This reduces errors, improves surface finish, and boosts efficiency.

3. High-Speed Machining (HSM)

HSM is particularly effective in aluminum processing due to the metal’s softness and high-speed tolerance. It helps achieve smoother surfaces and shorter cycle times while reducing the thermal load on the workpiece.

Types of Aluminum Alloy Cavities

The specific design and function of a cavity often determine the machining approach. Common types include:

• Cooling cavities: Used in molds and heat sinks to regulate temperature.

• Sensor and electronics housings: Internal compartments designed for circuit boards or optical elements.

• Flow channels: Found in engine components for fluids or gases.

• Weight-reduction cavities: Strategically placed hollow areas to reduce component mass.

• Acoustic cavities: Used in speaker components or ultrasonic equipment.

Each type presents unique challenges in terms of tool access, chip evacuation, and dimensional control, all of which must be addressed in the design and machining stages.

Challenges in Aluminum Alloy Cavity Processing

Though aluminum is easier to machine than many metals, cavity processing introduces specific challenges that require expert solutions:

1. Tool Access in Deep Cavities

Some internal features are difficult to reach with standard tools. Extended-reach end mills or custom tooling may be required to maintain precision in deep or narrow sections.

2. Chatter and Vibration

Long tools used in Deep Cavity Machining can lead to vibration, which negatively affects surface finish and dimensional accuracy. This can be mitigated with rigid fixturing, optimized feed rates, and high-performance cutting tools.

3. Thermal Expansion

Aluminum's high thermal conductivity also means that it expands more under heat. Proper cooling strategies and tool path planning help minimize thermal deformation during machining.

4. Chip Removal

Efficient chip evacuation is critical in cavity work to prevent tool breakage and maintain surface quality. High-pressure coolant systems or air blasts are commonly used.

Applications of Aluminum Alloy Cavity Processing

Aluminum alloy cavity processing is critical in industries where precision, weight reduction, and structural integrity are paramount. Key application areas include:

1. Aerospace and Defense

Aircraft and UAV components often require internal cavities to reduce weight, accommodate wiring, or facilitate fluid transfer. Parts such as actuator housings, bulkheads, and control systems benefit from lightweight aluminum cavity structures.

2. Automotive

Engine components, transmission housings, EV battery enclosures, and lightweight chassis parts frequently rely on cavity processing to meet performance, safety, and fuel efficiency standards.

3. Electronics

Aluminum cavities are used in enclosures, heat sinks, and cooling devices in consumer and industrial electronics. Internal compartments are precisely machined to house PCBs, LED arrays, or optical systems.

4. Medical Equipment

Cavity machining is vital in diagnostic machines, imaging devices, and surgical tools. The corrosion resistance and biocompatibility of certain aluminum alloys make them suitable for sterilizable, high-precision medical components.

5. Robotics and Automation

In robotic arms and automation platforms, aluminum alloy cavities allow for embedded electronics, cable routing, and weight optimization—essential for speed and control.

Design Considerations for Aluminum Cavity Parts

For efficient and cost-effective aluminum alloy cavity processing, certain design principles should be followed:

1. Minimize Overly Deep Cavities

Deep cavities require long tools and more complex setups, increasing cost and reducing accuracy. Design with depth-to-width ratios in mind.

2. Avoid Sharp Internal Corners

Fillets allow tools to transition smoothly, improving tool life and surface quality. Sharp corners are difficult to machine and may require additional EDM work.

3. Standardize Wall Thickness

Uneven wall thickness can lead to thermal stress and deformation during machining. Uniform walls enhance structural integrity and ease of manufacturing.

4. Include Access Points

If possible, design openings or relief areas to facilitate easier tool access and chip removal during machining.

5. Use Tolerances Wisely

Only apply tight tolerances where absolutely necessary. Over-specification increases production time and cost without necessarily improving performance.

Surface Treatment Options

After cavity machining, surface treatments can enhance the performance, appearance, and durability of aluminum alloy components. Common treatments include:

• Anodizing: Adds corrosion resistance, electrical insulation, and color options.

• Bead blasting: Provides a uniform matte finish and removes burrs.

• Chemical conversion coating (e.g., Alodine): Improves corrosion resistance without affecting conductivity.

• Powder coating or painting: Offers visual aesthetics and environmental protection.

Choosing the right finish depends on the component’s intended application, environment, and functional requirements.

Inspection and Quality Control

Precision cavity processing requires meticulous inspection to ensure each component meets design intent. Quality control measures may include:

• CMM (Coordinate Measuring Machine) inspection for dimensional accuracy

• Optical or laser scanning for surface mapping

• Bore gauges and pin gauges for internal features

• Surface roughness testing to meet specific Ra values

• Non-destructive testing (NDT) such as dye penetrant or X-ray for hidden flaws

Maintaining traceability and documentation is especially important in industries like aerospace, medical, and automotive.

Advantages of Aluminum Alloy Cavity Machining

Aluminum alloy cavity processing offers a range of benefits that make it a top choice for precision manufacturing:

• Weight savings without compromising structural performance

• Faster machining cycles thanks to excellent machinability

• Thermal and electrical performance ideal for electronics and engines

• High corrosion resistance for outdoor or harsh environments

• Customizability for complex geometries and integrated functionality

These advantages allow manufacturers to produce more efficient, cost-effective, and reliable products that meet the stringent demands of modern engineering.

Selecting the Right Machining Partner

When sourcing aluminum alloy cavity processing services, consider the following factors to ensure high-quality outcomes:

• Industry experience with aluminum alloys and cavity designs

• Advanced CNC capabilities, including multi-axis and high-speed machining

• Engineering support for DFM (Design for Manufacturability) and prototyping

• In-house finishing and inspection capabilities

• Certifications like ISO 9001, AS9100, or ISO 13485 for regulated industries

A reliable manufacturing partner can provide valuable input during the design phase, reduce lead times, and deliver consistent quality at scale.

Conclusion

Aluminum alloy cavity processing is a vital technology that supports the creation of lightweight, durable, and high-precision components across a range of demanding industries. With its excellent machinability, strength, and thermal properties, aluminum allows for complex cavity structures to be produced quickly, accurately, and cost-effectively.

From aerospace housings to consumer electronics enclosures, the ability to machine detailed internal cavities in aluminum is essential for innovation in engineering and design. As industries continue to push the limits of performance and miniaturization, the role of aluminum cavity machining will only become more critical.

Manufacturers who understand the intricacies of this process—and invest in the right tools, designs, and partners—will be well positioned to lead the next generation of precision manufacturing.
