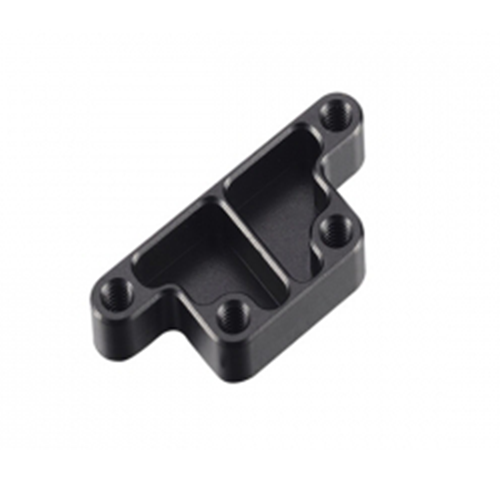

CNC Machining of Aerial Photography Drone Parts: Precision Engineering for High-Performance UAVs

Introduction

Aerial photography drones have revolutionized industries such as cinematography, agriculture, surveillance, and mapping. The performance and reliability of these drones rely heavily on the quality of their structural and mechanical parts. Among various manufacturing technologies, CNC machining has emerged as the backbone of high-precision drone component fabrication.

In this article, we explore the critical role of CNC machining in aerial drone part production, examining the processes, materials, benefits, and applications that make this technique indispensable for modern UAV (Unmanned Aerial Vehicle) engineering.

1. Understanding CNC Machining in the UAV Industry

CNC (Computer Numerical Control) machining is a subtractive manufacturing method that uses pre-programmed computer software to dictate the movement of factory tools and machinery. It ensures unparalleled precision, repeatability, and efficiency in the production of complex UAV components.

In the UAV sector, CNC machining is widely used to produce lightweight yet strong parts like:

• Motor mounts

• Gimbal brackets

• Propeller hubs

• Frame arms

• GPS holders

• Camera housings

• Heat sinks

These parts require exact dimensional tolerances to maintain balance, aerodynamics, and performance, especially in high-end aerial photography drones.

2. Importance of Precision in Aerial Photography Drones

Aerial photography drones carry sensitive equipment like gimbals, sensors, and high-resolution cameras. The mechanical components must be meticulously engineered to:

• Support stable flight and maneuverability

• Withstand vibrations and temperature variations

• Protect optical equipment during operation

• Enable accurate camera positioning and stabilization

Even minor dimensional discrepancies can affect flight dynamics, camera performance, and system integration. CNC machining eliminates such risks by achieving micron-level tolerances and smooth finishes.

3. Key Components Made by CNC Machining

Here’s a closer look at some aerial Drone components manufactured using CNC technology:

3.1. Motor Mounts and Propeller Hubs

Motor mounts must be symmetrically aligned and capable of withstanding high rotational forces. CNC-machined mounts maintain perfect roundness and secure fitting for brushless motors, ensuring balanced thrust during flight.

Propeller hubs, often machined from aluminum alloys, require accurate concentricity to avoid vibrations that could disrupt image stabilization.

3.2. Gimbal Brackets and Camera Mounts

Aerial drones rely on gimbals to keep the camera steady during movement. CNC-machined gimbal brackets offer rigid support with lightweight properties, crucial for minimizing power consumption and flight load.

Camera mounts and housings must be dimensionally stable and corrosion-resistant. CNC machining enables seamless integration with shock absorbers and vibration dampers.

3.3. Chassis and Frame Arms

The chassis and structural arms form the skeleton of the drone. Using CNC machining, manufacturers can create strong yet hollowed-out designs to reduce weight without compromising strength. Such parts are often made from high-strength aluminum, magnesium, or carbon-fiber-reinforced composites.

4. Material Selection for CNC-Machined Drone Parts

Material choice directly impacts the drone’s weight, durability, thermal resistance, and electromagnetic properties. CNC machining allows flexibility in material use, enabling manufacturers to meet diverse engineering requirements.

4.1. Aluminum Alloys

Aluminum 6061 and 7075 are popular for their strength-to-weight ratio, corrosion resistance, and ease of machining. They are ideal for motor brackets, frames, and heat sinks.

4.2. Titanium

Used for structural reinforcements and fasteners, titanium is corrosion-resistant and strong. Though harder to machine, CNC technology ensures tight tolerances even with this demanding material.

4.3. Carbon Fiber Composites

Carbon fiber sheets can be CNC-machined using high-speed tools. While technically not a metal, these parts are critical for ultralight drone frames and aerodynamic covers.

4.4. Engineering Plastics

Materials like POM (Delrin), ABS, and polycarbonate are used for insulating housings and non-structural enclosures. CNC machining produces smooth and dimensionally consistent plastic components.

5. Advantages of CNC Machining for UAV Applications

5.1. High Precision and Repeatability

CNC machines deliver dimensional accuracy within ±0.01 mm, ensuring consistent fitment across production batches. This is crucial for modular designs and part interchangeability.

5.2. Fast Prototyping and Production

CNC machining is ideal for both low-volume prototyping and mass production. Developers can quickly iterate drone designs without waiting for costly molds or dies.

5.3. Complex Geometries and Tight Tolerances

From intricate internal cavities to thin-walled structures, CNC systems can execute complex geometries that are essential for lightweight UAV design.

5.4. Material Versatility

Unlike injection molding or die casting, CNC machining supports a wider range of engineering materials. This makes it suitable for drones operating in harsh or specialized environments.

5.5. Improved Surface Finish

Drone parts often require smooth surfaces to minimize air resistance or integrate with seals and sensors. CNC machining can achieve Ra surface finishes of<0.8 μm with proper tooling and post-processing.

6. CNC Processes Used in UAV Part Fabrication

Several CNC operations are employed based on part design and material:

• 3-axis and 5-axis milling: For complex contours, frames, and bracket features

• Turning/lathe work: For round parts like hubs, bushings, and spacers

• Drilling and tapping: For screw holes, ventilation, and cable passages

• Wire EDM: For intricate shapes with tight corner radii

• Grinding and polishing: For final surface finishing and precise fitment

Advanced CAD/CAM software ensures that toolpaths are optimized for precision and speed, reducing material waste and machine wear.

7. Quality Control and Testing

In the aerial drone industry, strict quality assurance is essential. After CNC machining, parts undergo multiple inspections:

• CMM (Coordinate Measuring Machine) checks for dimensional conformity

• Surface roughness measurement for aerodynamic and assembly performance

• Non-destructive testing for critical load-bearing parts

• Assembly simulation to ensure compatibility and fit

Such stringent inspection protocols guarantee that drone parts perform reliably in real-world flight conditions.

8. Applications in Various Drone Types

CNC machining supports aerial drone part production across multiple categories:

8.1. Consumer Photography Drones

These require lightweight frames and high aesthetic quality. CNC-machined parts enable compact, sleek designs while ensuring performance.

8.2. Professional Filmmaking Drones

Heavy-duty components are needed to carry high-resolution cameras. CNC machining delivers strength without adding excessive weight.

8.3. Surveying and Mapping UAVs

Precision and sensor compatibility are essential. CNC allows the integration of GPS, LIDAR, and infrared sensors into durable housings.

8.4. Agricultural and Industrial Drones

CNC-machined drone parts withstand chemical exposure, thermal cycling, and physical stress, making them suitable for harsh outdoor environments.

9. Customization and OEM Support

CNC machining is a preferred method for OEM drone manufacturers due to its customizability:

• Branding, logos, and serial numbers can be engraved

• Mounting points and hole patterns can be adapted to specific systems

• Modular part designs support upgrades and accessories

• Short lead times make it ideal for design iteration or small-batch production

10. Future Trends in CNC UAV Component Manufacturing

As drone technology evolves, CNC machining continues to play a critical role. Trends shaping the future include:

• Micromachining for miniaturized drone electronics and sensor mounts

• AI-driven toolpath optimization for faster, more efficient production

• Hybrid machining + additive manufacturing for complex assemblies

• Sustainable machining using recyclable materials and green lubricants

• Automated QC systems for real-time dimensional verification

These advancements are poised to further improve the speed, cost-efficiency, and environmental impact of drone part manufacturing.

Conclusion

CNC machining is the cornerstone of aerial photography drone part production, offering unmatched precision, speed, and customization. From motor mounts to camera housings, CNC-machined components ensure high performance, durability, and reliability in demanding UAV applications.

As drone technology continues to expand into new industries and applications, CNC machining will remain at the forefront of innovation—powering the next generation of intelligent, lightweight, and high-performance aerial systems.
