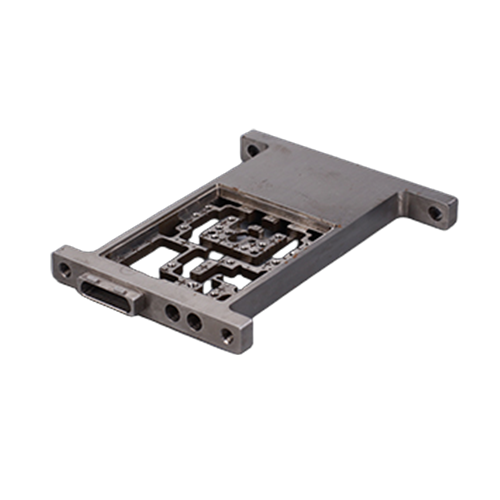

Complex cavity CNC machining: Precision Solutions for Intricate Internal Geometries

Introduction

Complex cavity CNC machining is a sophisticated manufacturing process designed to create highly detailed internal structures within components. This process is critical across a variety of industries, including aerospace, automotive, medical, electronics, and energy, where precision, reliability, and performance are paramount. As product designs become increasingly intricate and miniaturized, the demand for machining capabilities that can deliver tight tolerances, superior surface finishes, and multi-dimensional geometries has grown exponentially.

This comprehensive article explores the fundamentals, technologies, materials, applications, challenges, and benefits of complex cavity CNC machining. It aims to provide engineers, manufacturers, and procurement professionals with a clear understanding of how this advanced machining method supports innovation and quality in modern manufacturing.

What Is Complex Cavity CNC Machining?

Complex cavity CNC machining refers to the precision fabrication of internal cavities—recesses, channels, pockets, and hollow spaces—that have intricate shapes, multi-surface profiles, and often require multi-axis tool access. Unlike simple pockets or through-holes, complex cavities might include curved walls, undercuts, tapered sections, and deep recesses that are not accessible by traditional machining techniques.

CNC (Computer Numerical Control) technology automates the machining process, allowing for precise, repeatable, and complex movements of cutting tools along multiple axes. This level of automation and control is essential to handle the geometric complexity and tight tolerances that complex cavities demand.

Key Technologies in Complex Cavity CNC Machining

Multi-Axis CNC Machines

• 3-Axis Machining: Basic machining movements along X, Y, and Z axes; suitable for relatively simple cavities.

• 4-Axis Machining: Adds rotation around one axis, enabling access to features on multiple sides.

• 5-Axis Machining: Provides simultaneous movement along three linear axes and two rotational axes, enabling machining of highly intricate and angled internal surfaces without repositioning the part.

Advanced Tooling

• Ball End Mills: Perfect for machining curved surfaces inside cavities.

• Bull Nose Cutters: Provide strong cutting edges for finishing operations with smooth transitions.

• Long-Reach Tools: Designed to access deep or narrow cavities.

• Custom Tools: Created to meet unique cavity shapes and dimensions.

CAM Software and Simulation

Computer-Aided Manufacturing (CAM) software is used to generate optimized toolpaths that minimize tool collisions, reduce machining time, and improve surface quality. Advanced simulation tools can model tool deflection, heat generation, and material removal to predict machining outcomes accurately.

Materials Suitable for Complex Cavity CNC Machining

The choice of material affects machining strategy, tool wear, and final part properties. Common materials include:

• Aluminum Alloys: Lightweight, easy to machine, used in aerospace and electronics.

• Stainless Steel: Durable and corrosion-resistant, common in medical and food-grade applications.

• Titanium Alloys: High strength-to-weight ratio, used in aerospace and medical implants.

• Brass and Copper: Excellent thermal and electrical conductivity, used in electrical components.

• Engineering Plastics: Such as PEEK and Delrin, used for non-metallic precision components.

Each material presents unique machining challenges, such as hardness, thermal conductivity, and chip formation, influencing tool choice and machining parameters.

Applications of Complex Cavity CNC Machining

Aerospace

Critical aerospace components such as turbine blades, fuel injectors, and structural housings often contain complex internal cavities. These cavities serve purposes such as weight reduction, fluid flow management, and thermal regulation. Complex cavity machining ensures these parts meet strict safety and performance standards.

Medical Devices

Surgical instruments, implantable devices, and diagnostic equipment often incorporate intricate cavities for housing electronics, fluids, or mechanical systems. High precision and biocompatibility requirements make CNC machining a preferred manufacturing method.

Automotive

Engine parts, transmission components, and cooling systems use complex internal cavities to optimize performance and efficiency. Machining these features with precision improves fuel efficiency, power output, and emissions control.

Electronics

Housings, heat sinks, and cooling channels in electronic devices require finely machined cavities to ensure proper fit, thermal management, and electromagnetic shielding.

Energy Sector

Complex internal channels in valves, pumps, and heat exchangers facilitate fluid and gas flow. Precision machining improves system reliability and efficiency.

Challenges in Complex Cavity CNC Machining

Tool Access and Clearance

Machining deep or narrow cavities poses challenges in tool accessibility. Long tools may be required, increasing the risk of deflection and chatter.

Heat Management

High cutting speeds generate heat that can deform the part or reduce tool life. Proper cooling strategies, including flood coolant and high-pressure air, are critical.

Chip Evacuation

Accumulated chips inside cavities can damage surfaces or tools. Efficient chip removal through coolant flow or compressed air is necessary.

Surface Finish

Achieving the desired surface finish inside complex cavities requires careful tool selection and machining parameters, often involving multiple finishing passes.

Programming Complexity

Multi-axis machining requires sophisticated CAM programming to create safe and efficient toolpaths while avoiding collisions.

Best Practices for Successful Complex Cavity CNC Machining

• Design for Manufacturability: Collaborate with machining experts during design to ensure cavity features are achievable.

• Optimize Toolpaths: Use advanced CAM software to simulate and refine machining strategies.

• Select Appropriate Tools: Match cutting tools to material properties and cavity geometry.

• Use Rigorous Quality Control: Implement coordinate measuring machines (CMM) and other inspection methods to verify tolerances.

• Maintain Equipment: Regular calibration and maintenance of CNC machines ensure consistent performance.

Benefits of Complex Cavity CNC Machining

• Precision and Accuracy: Achieves micron-level tolerances critical for high-performance applications.

• Design Flexibility: Enables production of geometrically complex features that are otherwise impossible.

• Improved Product Performance: Precisely machined cavities contribute to better fluid dynamics, thermal properties, and structural integrity.

• Cost-Effective Production: Reduces need for assembly of multiple parts by integrating features into a single component.

• Scalability: Suitable for prototyping as well as high-volume manufacturing.

Future Trends in Complex Cavity CNC Machining

• Integration with Additive Manufacturing: Hybrid processes combining 3D printing and CNC machining for enhanced design possibilities.

• AI and Machine Learning: Optimizing toolpaths and predictive maintenance for improved efficiency.

• Automation: Robotic loading and unloading to increase throughput.

• Enhanced Materials: Machining of new alloys and composites with specialized tooling.

Conclusion

Complex cavity CNC machining is a vital technology enabling the creation of intricate internal features with exceptional precision and surface quality. Its ability to handle challenging geometries while maintaining tight tolerances makes it indispensable across aerospace, medical, automotive, electronics, and energy industries.

By leveraging advanced multi-axis machines, optimized tooling, and sophisticated CAM programming, manufacturers can meet the increasing demands of modern product design. Continuous advancements in automation, AI, and hybrid manufacturing promise to further expand the capabilities and efficiency of complex cavity CNC machining in the future.

Understanding and implementing best practices in design, tooling, and quality control ensure that complex cavity components meet or exceed performance expectations, providing a competitive edge in today’s technology-driven marketplace.
