Efficient Processing of Mold Cavities: Precision, Productivity, and Innovation in Mold Manufacturing

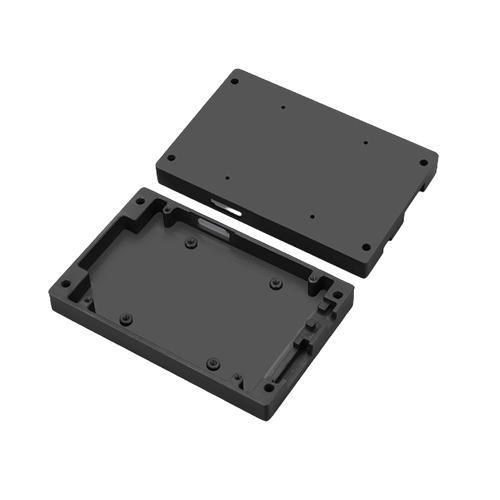

In today’s advanced manufacturing environment, efficient processing of mold cavities plays a pivotal role in ensuring the accuracy, performance, and cost-effectiveness of molded components across industries. From automotive parts and electronic housings to medical devices and consumer packaging, the efficiency and precision of cavity machining directly affect product quality and production cycle times.

This article delves into the technological approaches, machining strategies, tooling solutions, and quality control practices that drive efficient Mold cavity processing, with a focus on CNC machining, precision milling, EDM, and high-speed cutting technologies. Whether you're a mold manufacturer, a design engineer, or a production manager, understanding these fundamentals can help you optimize results and reduce operational costs.

1. Understanding Mold Cavity Processing

Mold cavities are the hollow sections within a mold that give the final product its intended shape. Efficiently processing these cavities is critical because they must meet strict tolerances and surface finish requirements to ensure seamless molding and ejection of plastic, metal, or composite materials.

Mold cavities are typically created in hardened tool steels, aluminum alloys, or other robust materials using high-precision machining methods. Due to the complex geometries and tight tolerances required, processing demands advanced machinery, skilled technicians, and optimized workflows.

2. Importance of Efficiency in Mold Cavity Machining

Efficient cavity processing doesn’t just mean faster cycle times—it also means:

• Minimized tool wear

• Improved dimensional accuracy

• Enhanced surface finish

• Reduced rework and scrap

• Lower total manufacturing costs

In a competitive market, moldmakers must deliver precision components with short lead times and minimal waste. Efficiency becomes a key differentiator.

3. Key Technologies in Mold Cavity Processing

3.1 CNC Machining

Computer Numerical Control (CNC) machining is a cornerstone of efficient mold cavity processing. Using multi-axis CNC mills and lathes, complex internal geometries can be machined with precision and repeatability.

CNC advantages include:

• Consistent accuracy across batches

• Automated tool paths for reduced manual intervention

• High-speed cutting for increased productivity

• Support for complex 3D surfaces via 5-axis machining

Modern CNC systems often integrate CAD/CAM software, allowing seamless design-to-manufacturing transitions.

3.2 High-Speed Milling

High-speed milling (HSM) is ideal for cavity roughing and finishing. The technique uses elevated spindle speeds (often over 20,000 RPM) and low depths of cut to remove material quickly while reducing cutting forces.

HSM benefits:

• Lower thermal distortion in hardened materials

• Smooth surface finishes without secondary polishing

• Reduced machining time, especially for small or detailed features

3.3 Electrical Discharge Machining (EDM)

EDM is essential for processing deep cavities, sharp corners, and hard-to-machine alloys. Two main types are used:

• Sinker EDM for forming complex cavities with graphite or copper electrodes

• Wire EDM for contour cutting or finishing of inserts

EDM allows processing without direct contact between tool and workpiece, making it ideal for high-precision finishing where conventional methods fall short.

4. Tooling and Material Considerations

Efficient mold cavity machining relies on proper tooling and workpiece material selection.

4.1 Cutting Tools

Using advanced cutting tools enhances efficiency. Common choices include:

• Carbide end mills for hard steels

• Coated tools (TiAlN, DLC, etc.) to reduce heat and wear

• Ball-nose cutters for 3D surface finishing

• High-feed tools for roughing large volumes

Tool geometry and coating are matched to material hardness, cutting speed, and cavity complexity.

4.2 Workpiece Materials

Most mold cavities are machined from:

• Tool steels (H13, P20, S7) for high wear resistance

• Aluminum alloys for faster processing and prototyping

• Stainless steels for corrosion resistance in medical or food applications

Material hardness significantly impacts feed rates, cutting speeds, and tool life.

5. Workflow Optimization for Cavity Machining

Improving workflow is a crucial part of efficient mold cavity processing. Best practices include:

5.1 CAD/CAM Integration

Using integrated CAD/CAM software allows accurate simulation of tool paths, collision detection, and surface analysis. It helps reduce programming time and avoid errors during machining.

5.2 Machining Strategy Selection

Choosing the right strategy is key. For example:

• Z-level roughing for initial bulk material removal

• Spiral finishing for uniform surface texture

• Adaptive milling to maintain constant chip load and avoid tool overload

These strategies reduce cycle time while enhancing accuracy.

5.3 Process Automation

Automation via robotic handling, tool changers, and in-process metrology significantly improves efficiency. Automated pallet systems allow for lights-out machining, maximizing machine utilization during off-hours.

6. Surface Finish and Dimensional Accuracy

Efficient processing must also prioritize dimensional accuracy and surface integrity, as these directly affect part release and lifecycle.

6.1 Surface Roughness

The goal is to achieve smooth surfaces, often below Ra 0.8 µm. Techniques to improve surface finish include:

• Fine milling with small-step ball-end cutters

• EDM polishing with precise discharge parameters

• Manual or ultrasonic polishing for mirror finishes

6.2 Tolerance Control

Typical tolerances in mold cavities range between ±0.005 mm and ±0.01 mm depending on application. Consistent calibration, quality tooling, and closed-loop inspection help maintain this accuracy.

7. Inspection and Quality Assurance

No machining process is complete without thorough inspection and quality assurance. Common methods include:

• Coordinate Measuring Machines (CMMs) to verify critical dimensions

• Laser scanning or 3D probing for complex cavity surfaces

• Hardness testing to confirm material properties

• Optical inspection for surface texture evaluation

Implementing in-process inspection reduces post-machining errors and boosts first-pass yield.

8. Common Challenges and Solutions

8.1 Tool Wear

Problem: Excessive tool wear increases downtime and lowers precision.
Solution: Use coated tools, optimized feeds/speeds, and regular monitoring.

8.2 Heat Buildup

Problem: Thermal deformation affects cavity size and surface finish.
Solution: Apply high-speed machining with air/oil mist cooling or coolant-through tooling.

8.3 Chip Evacuation

Problem: Poor chip removal leads to recutting and tool damage.
Solution: Use high-pressure coolant, helical interpolation, or peck milling in deep cavities.

9. Industry Applications

Efficient mold cavity machining benefits multiple sectors:

• Automotive: Precision molds for engine parts, lights, and interior components

• Aerospace: High-tolerance molds for composite parts

• Medical: Ultra-clean, high-accuracy molds for implants and diagnostic tools

• Consumer Goods: Rapid tooling for injection-molded plastic products

• Electronics: Fine-feature molds for connectors, cases, and sensors

The need for high productivity and accuracy is universal.

10. Future Trends in Mold Cavity Machining

As technology advances, several trends are shaping the future of mold cavity processing:

10.1 Hybrid Machining

Combining additive and subtractive processes (e.g., 3D printing + CNC) allows moldmakers to build complex inserts and finish them in a single setup.

10.2 AI and Machine Learning

Smart CNC systems can learn optimal feed rates and tool paths over time, reducing operator input and enhancing repeatability.

10.3 Digital Twins

Virtual models of machining processes enable predictive simulations, error detection, and real-time performance monitoring.

10.4 Sustainable Machining

Coolant recycling, dry cutting techniques, and energy-efficient machines contribute to environmentally responsible manufacturing.

Conclusion

Efficient processing of mold cavities is fundamental to modern mold manufacturing. It demands the right combination of high-precision equipment, strategic machining approaches, cutting-edge tooling, and skilled craftsmanship.

By embracing digital workflows, high-speed cutting, EDM technology, and rigorous quality control, manufacturers can significantly improve their productivity and deliver molds with tight tolerances and exceptional surface finishes. This not only enhances product quality but also shortens development cycles and reduces overall production costs.

For companies looking to stay competitive in a fast-evolving manufacturing world, investing in efficient cavity processing is not just a technical upgrade—it’s a strategic advantage.
