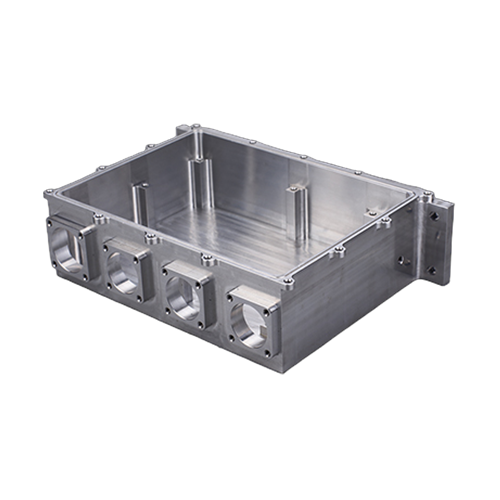

High-Precision Part Cavity Processing: Essential Techniques for Advanced Manufacturing

Introduction

In the realm of advanced manufacturing, high-precision part cavity processing stands out as a crucial technique for producing components with intricate internal geometries that demand exceptional accuracy and surface quality. This process plays a vital role in industries such as aerospace, automotive, medical devices, electronics, and energy, where the performance and reliability of parts often hinge on the precision of their internal cavities.

As modern product designs continue to evolve toward miniaturization, complexity, and enhanced functionality, the ability to machine precise cavities with tight tolerances and flawless finishes has become indispensable. This article explores the fundamentals, technologies, applications, challenges, and advantages of high-precision part cavity processing, providing a comprehensive overview for engineers, manufacturers, and decision-makers.

What Is High-Precision Part Cavity Processing?

High-precision part cavity processing refers to the manufacturing techniques used to create internal hollow spaces, pockets, or channels within a part, with very tight dimensional tolerances and superior surface finishes. These cavities can be simple or complex, ranging from cylindrical bores to multi-level, contoured, or undercut internal structures.

Achieving high precision in cavity processing is critical to ensure that parts perform as designed, fit properly within assemblies, and maintain durability under operational stresses. This often requires the use of advanced CNC (Computer Numerical Control) machining, multi-axis milling, electrical discharge machining (EDM), and sometimes additive manufacturing technologies.

Key Technologies in High-Precision Cavity Processing

CNC Machining

CNC machining remains the backbone of high-precision cavity processing. With computer-controlled movements along multiple axes, CNC machines can produce cavities with micron-level tolerances and excellent repeatability. Typical configurations include:

• 3-Axis Machining: Suitable for simple cavities with vertical walls and flat bottoms.

• 4-Axis Machining: Adds rotation around one axis, allowing machining of cavities on multiple faces.

• 5-Axis Machining: Enables simultaneous movement along three linear and two rotational axes, perfect for complex cavity geometries with undercuts and angled surfaces.

Electrical Discharge Machining (EDM)

For cavities that are difficult or impossible to machine conventionally, EDM offers a non-contact method by eroding material with electrical discharges. This technique is especially useful for hard materials or extremely tight tolerance cavities.

Laser Machining

Laser technology is used for micro-cavities or precision finishing of cavity surfaces. Its high energy density allows precise material removal without mechanical contact.

Additive Manufacturing (AM)

While traditionally a subtractive process, cavity creation can be assisted by additive manufacturing, where near-net shape parts are printed and then finished with high-precision machining to achieve exact cavity dimensions.

Materials for High-Precision Part Cavity Processing

A wide range of materials can undergo high-Precision cavity machining depending on application requirements, including:

• Aluminum Alloys: Lightweight and highly machinable, ideal for aerospace and electronics.

• Stainless Steel: Offers corrosion resistance and strength, common in medical and food industries.

• Titanium Alloys: High strength-to-weight ratio and biocompatibility for aerospace and implants.

• Copper and Brass: Excellent thermal and electrical properties for electronics and heat exchangers.

• Engineering Plastics: Materials such as PEEK, Delrin, and PTFE provide chemical resistance and electrical insulation.

Selecting the right material influences tooling, machining parameters, and finishing processes to maintain precision and surface quality.

Applications of High-Precision Part Cavity Processing

Aerospace Industry

Internal cavities in aerospace components such as turbine blades, fuel nozzles, and structural elements require extreme precision to ensure performance under high stress and temperature. High-Precision Cavity Machining helps reduce weight while maintaining strength and aerodynamic efficiency.

Medical Devices

Surgical tools, implants, diagnostic equipment, and drug delivery systems often incorporate cavities for housing electronics, fluids, or mechanical parts. Precision is vital to ensure biocompatibility, sterilizability, and functional reliability.

Automotive

Engine blocks, transmission parts, fuel injectors, and cooling systems include cavities designed for fluid flow, heat management, or weight reduction. High-precision machining improves efficiency, emissions control, and durability.

Electronics

Heat sinks, enclosures, connectors, and sensor housings require accurate cavity machining to ensure tight fits, thermal management, and electromagnetic shielding.

Energy Sector

Pumps, valves, heat exchangers, and flow control devices rely on precisely machined cavities for optimized fluid dynamics and operational reliability.

Challenges in High-Precision Part Cavity Processing

Tool Access and Geometry

Complex cavities with deep recesses, narrow channels, or undercuts pose significant challenges for tool access. Specialized long-reach tools or multi-axis machining are necessary to reach all surfaces.

Thermal Effects

Heat generated during machining can cause thermal expansion of both the workpiece and tooling, affecting dimensional accuracy. Effective cooling and optimized cutting parameters help mitigate this issue.

Surface Finish

Achieving smooth, defect-free cavity surfaces is critical for fluid flow, sealing, or aesthetic purposes. This often requires multiple finishing passes with fine tooling.

Material Hardness

Hard or abrasive materials increase tool wear and require frequent tool changes or advanced cutting materials such as carbide or diamond-coated tools.

Chip Evacuation

Removing chips efficiently from deep cavities is essential to prevent surface damage or tool breakage. High-pressure coolant or air blast systems are commonly employed.

Best Practices for High-Precision Cavity Processing

• Design for Manufacturability: Early collaboration between designers and machinists ensures cavity designs are feasible and cost-effective.

• Select Appropriate Machinery: Utilize multi-axis CNC machines with adequate rigidity and precision capabilities.

• Optimize Toolpaths: Advanced CAM programming and simulation prevent collisions and enhance machining efficiency.

• Use High-Quality Tooling: Employ durable, sharp cutting tools matched to the material and cavity geometry.

• Implement Rigorous Quality Control: Use coordinate measuring machines (CMM), optical scanners, and surface profilometers for inspection.

Benefits of High-Precision Part Cavity Processing

• Enhanced Component Performance: Accurate cavities improve fluid flow, mechanical strength, and thermal management.

• Improved Assembly Fit: Tight tolerances reduce the need for secondary adjustments or rework.

• Reduced Material Waste: Precise machining minimizes scrap and over-machining.

• Shorter Lead Times: Efficient processing and fewer setups accelerate production.

• Scalability: Suitable for prototyping and high-volume manufacturing with consistent quality.

Emerging Trends in Cavity Processing

• Hybrid Manufacturing: Combining additive manufacturing with precision machining to produce complex cavity geometries efficiently.

• Automation and Robotics: Automating loading, unloading, and inspection to improve throughput and consistency.

• AI-Driven Process Optimization: Leveraging artificial intelligence for adaptive toolpath generation and predictive maintenance.

• Advanced Metrology: Integrating in-process inspection for real-time quality assurance.

Conclusion

High-precision part cavity processing is a cornerstone of modern manufacturing, enabling the production of complex, reliable, and high-performance components. Through the integration of advanced CNC machining, EDM, laser processing, and additive manufacturing, manufacturers can meet the stringent demands of today’s industries.

By embracing best practices in design, tooling, and quality control, companies can achieve superior accuracy, surface quality, and production efficiency. As technology advances, high-precision cavity processing will continue to drive innovation, enabling ever more sophisticated products that meet the challenges of tomorrow.
