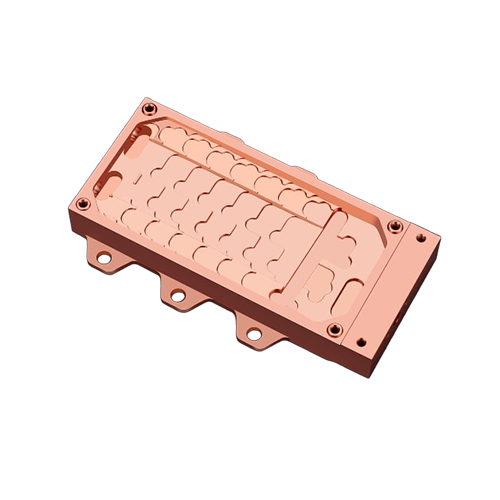

Mechanical Cavity Depth Processing: Precision Engineering for Complex Component Manufacturing

Introduction

Mechanical cavity depth processing is a highly specialized field within precision machining that involves the accurate shaping, milling, and forming of deep, intricate cavities in metal or other solid materials. This process is essential in the manufacture of components for molds, dies, aerospace structures, automotive parts, medical implants, and industrial equipment.

The ability to achieve high accuracy in Deep Cavity Machining is critical for producing complex internal geometries that cannot be reached with standard machining methods. With the increasing demand for high-performance components and tighter tolerances, mechanical cavity depth processing has evolved to incorporate advanced CNC (Computer Numerical Control) technologies, high-speed milling, multi-axis machining, and optimized toolpath strategies.

This article explores the importance, techniques, challenges, equipment, and applications of mechanical cavity depth processing. Whether you are a manufacturer, engineer, or industrial designer, understanding this process can help you make better decisions in material processing and product development.

What Is Mechanical Cavity Depth Processing?

Mechanical cavity depth processing refers to the controlled machining of deep recesses, pockets, or hollow sections in a material—usually metals such as steel, aluminum, titanium, or hardened alloys. These cavities can serve a range of purposes, such as:

• Housing mechanical components (e.g., gears, bearings)

• Forming complex mold or die shapes

• Creating fluid or airflow pathways in engineering systems

• Providing structural weight reduction without sacrificing integrity

This process is performed using high-precision CNC milling machines equipped with long-reach tooling, real-time monitoring systems, and optimized spindle dynamics to maintain accuracy, repeatability, and surface integrity.

Importance in Modern Manufacturing

The relevance of mechanical cavity depth processing in modern manufacturing lies in its ability to deliver:

1. High-precision internal geometries – Essential for components like injection molds, turbine housings, and engine blocks.

2. Structural integrity – Accurate material removal helps maintain balance and strength in mechanical systems.

3. Design flexibility – Engineers can implement complex 3D cavity structures that support innovation.

4. Product miniaturization – Deep cavities enable compact, multifunctional parts for aerospace, electronics, and medical industries.

Without this level of mechanical processing, many high-performance systems would not function efficiently, or at all.

Key Techniques Used in Cavity Depth Processing

Several machining techniques are commonly used to process deep cavities:

1. CNC Milling

CNC milling is the core method for cavity depth machining. It involves rotating cutting tools controlled by a computer program to remove material precisely and incrementally.

• 3-axis and 5-axis milling are commonly used for both straight and angled surfaces within a cavity.

• High-speed milling (HSM) allows faster cutting with reduced heat, improving tool life and surface finish.

2. Wire EDM (Electrical Discharge Machining)

For extremely deep or narrow cavities where traditional tools cannot reach, Wire EDM can be used to erode material with electrical discharges. This is particularly useful for hardened metals and micro-precision applications.

3. Gun Drilling and Deep Hole Drilling

This method is used when deep cavities are cylindrical or involve very narrow pathways. It ensures excellent concentricity and depth-to-diameter ratios.

4. Trochoidal Milling

A specialized strategy where the tool moves in a looping, circular path to reduce tool engagement and heat buildup—ideal for deep pockets and hard materials.

5. Step-Down Machining

This is a layering technique that progressively removes material from the cavity bottom upward, ensuring tool stability and improved chip evacuation.

Challenges in Deep Cavity Machining

Despite technological advancements, mechanical cavity depth processing comes with significant challenges:

1. Tool Deflection

Long-reach cutting tools are more prone to bending or deflection during operation, which can result in dimensional inaccuracies.

2. Heat Generation

Deep cavity processing can generate excessive heat due to the difficulty in coolant delivery to the cutting zone, affecting tool wear and material properties.

3. Chip Evacuation

In deep or narrow cavities, chips can get trapped, causing recutting, surface damage, or tool breakage.

4. Vibration and Chatter

The deeper the cut, the higher the likelihood of tool vibration, which leads to poor surface finish and compromised accuracy.

5. Limited Visibility and Access

Deep cavities reduce the visibility of the machining zone, making real-time monitoring and corrections more difficult without advanced sensors or automation.

Solutions and Best Practices

To overcome the above challenges, manufacturers often implement the following strategies:

1. Use of Rigid and Coated Tools

Using tools made from high-performance materials (e.g., carbide) with anti-vibration coatings enhances stiffness and heat resistance.

2. Optimized Toolpath Simulation

Advanced CAM (Computer-Aided Manufacturing) software simulates the toolpath, predicting collisions, tool loads, and deflection to optimize performance.

3. High-Pressure Coolant Systems

Delivering coolant deep into the cavity ensures better heat dissipation and chip removal.

4. Multi-Axis Machining

Using 5-axis or 6-axis machines allows the tool to access complex geometries more effectively, reducing the need for repositioning and secondary setups.

5. Vibration Dampers and Tool Holders

Modern tool holders equipped with damping systems help reduce vibration and extend tool life during deep cavity milling.

Suitable Materials for Cavity Depth Processing

Mechanical cavity processing is applicable to a wide range of materials. Common choices include:

• Aluminum – Easy to machine, suitable for aerospace and electronics.

• Tool Steel – Used in die and mold applications due to its hardness.

• Titanium – Common in medical and aerospace applications for strength-to-weight ratio.

• Stainless Steel – Offers corrosion resistance and is used in fluid handling systems.

• Copper Alloys – Preferred for molds requiring high thermal conductivity.

Each material requires different machining parameters, including feed rate, spindle speed, and coolant type.

Industrial Applications

Mechanical cavity depth processing is vital across multiple sectors:

1. Aerospace and Defense

Cavities in turbine blades, engine housings, and structural elements require extremely tight tolerances and high-strength materials.

2. Automotive Manufacturing

Engine blocks, gear housings, and transmission cases often contain intricate internal cavities that affect performance and fuel efficiency.

3. Medical Devices

Surgical implants, orthopedic tools, and diagnostic equipment benefit from miniature, high-Precision cavity machining.

4. Injection Molding and Die Casting

Mold cavities are among the most demanding components to machine due to their complexity and finish requirements.

5. Electronics and Micro-Mechanics

Heat sinks, battery housings, and electronic enclosures require detailed internal geometries to support compact device designs.

Quality Control and Inspection

To ensure that deep cavities meet specifications, the following inspection tools and techniques are used:

• CMM (Coordinate Measuring Machines) – Verify 3D dimensions.

• Borescopes – Provide visual inspection deep inside cavities.

• Laser Scanning – Creates high-resolution models for comparison.

• Surface Profilometers – Measure roughness inside the cavity.

• Ultrasonic Probing – Used when contact methods are limited.

Regular calibration and inspection are critical in maintaining repeatable quality in cavity depth processing.

Future Trends in Mechanical Cavity Depth Processing

1. AI-Driven Toolpath Optimization

Machine learning algorithms are being used to optimize toolpaths in real-time, reducing cycle times and tool wear.

2. Hybrid Machining

Combining additive manufacturing (3D printing) with subtractive cavity machining allows for complex, near-net shapes to be refined with precision.

3. Digital Twin Integration

Real-time synchronization between the physical machining process and a virtual twin allows predictive maintenance and process enhancement.

4. Micro-Machining for Nano-Components

As devices shrink, there’s a growing need for ultra-deep micro-cavities in miniature components, particularly in the biomedical and electronics sectors.

Conclusion

Mechanical cavity depth processing is a cornerstone of modern precision engineering. Its ability to produce deep, complex internal features with high accuracy has made it indispensable in industries ranging from aerospace to medicine. As technology advances, so do the techniques, tools, and applications of this field.

Manufacturers who invest in high-quality equipment, skilled operators, and optimized processes can ensure consistent performance, reduced cycle times, and superior product quality. Whether you are fabricating molds, automotive parts, or aerospace components, mastering the art of cavity depth machining is critical to staying competitive in today’s high-tech industrial landscape.
