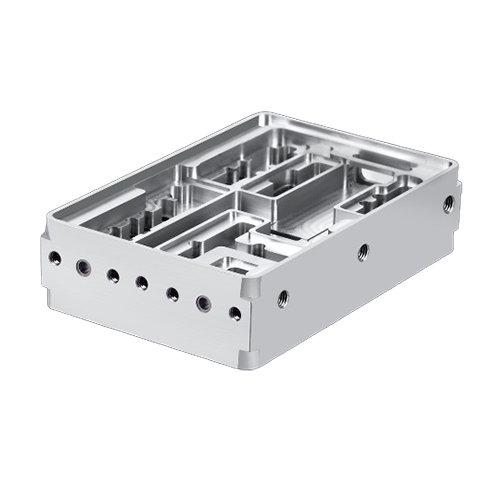

multi-axis CNC machining of Cavities: Precision and Efficiency in Complex Component Manufacturing

Introduction

Multi-axis CNC machining has revolutionized the manufacturing industry by enabling the creation of complex geometries with unparalleled precision and efficiency. Among its many applications, multi-axis CNC machining of cavities stands out as a critical process for producing intricate internal features within components used in aerospace, automotive, medical devices, mold making, and many other high-tech industries.

This article offers an in-depth exploration of multi-axis CNC machining specifically for cavity manufacturing. It covers the fundamentals, benefits, challenges, tooling, programming strategies, and industry applications of this advanced machining technology. Whether you are a manufacturing engineer, mold maker, or industrial designer, understanding multi-axis CNC cavity machining can empower you to optimize production processes and improve product quality.

Understanding Multi-Axis CNC Machining

Multi-axis CNC machining involves computer-controlled cutting machines that operate across more than the traditional three linear axes (X, Y, Z). The additional axes—commonly the A, B, and C rotary axes—allow tools or workpieces to rotate and tilt, providing access to complex surfaces and features from various angles without the need to reposition the part manually.

Typical Multi-Axis Configurations:

• 4-axis CNC: Adds rotation around one axis (usually A or B axis).

• 5-axis CNC: Includes two rotational axes plus three linear axes, enabling simultaneous multi-directional tool movement.

• 6-axis CNC: Offers even greater flexibility, often incorporating robotic arms or additional rotational motions.

For cavity machining, 5-axis CNC machines are the most common due to their ability to precisely access intricate internal geometries, undercuts, and angled surfaces.

What Are Cavities in Machining?

In machining, cavities refer to hollowed-out internal features or recesses within a solid workpiece. These cavities may serve various functional purposes, such as housing components, enabling fluid flow, forming mold cavities for injection molding, or reducing weight while maintaining structural integrity.

Creating cavities with high precision and complex shapes demands advanced machining strategies and equipment, which is where multi-axis CNC machining excels.

Advantages of Multi-Axis CNC Machining for Cavities

1. Enhanced Geometric Access
   Multi-axis machining allows the cutting tool to approach the cavity from multiple directions, reducing the need for multiple setups and complex fixturing.

2. Improved Surface Finish and Accuracy
   Continuous adjustment of the tool orientation helps maintain optimal cutting conditions, leading to superior surface quality and tighter tolerances.

3. Reduced Setup Times and Increased Productivity
   By machining complex cavities in a single setup, manufacturers minimize handling and alignment errors, speeding up production cycles.

4. Capability to Machine Complex Undercuts and Features
   Multi-axis machines can handle challenging cavity geometries, including steep walls, deep pockets, and intricate curves.

5. Lower Tool Wear and Enhanced Tool Life
   Optimal tool orientation reduces cutting forces and vibrations, prolonging tool life and reducing tooling costs.

Key Technologies in Multi-Axis CNC Machining of Cavities

1. High-Speed Machining (HSM)

High-speed machining, combined with multi-axis control, facilitates faster material removal while minimizing heat generation and tool wear. It allows fine, smooth finishing passes crucial for cavity surface integrity.

2. Advanced CAM Software

Computer-Aided Manufacturing (CAM) software plays a vital role in generating efficient, collision-free toolpaths for multi-axis machines. It optimizes cutting strategies like trochoidal milling, spiral contouring, and rest machining, essential for cavity details.

3. Tool Monitoring and Adaptive Control

Real-time feedback systems monitor tool condition, load, and vibration during cavity machining, enabling adaptive adjustments to feed rates and speeds to prevent damage and maintain accuracy.

Tooling for Multi-Axis Cavity Machining

Selecting appropriate tooling is crucial for efficient cavity machining:

• Ball Nose End Mills: Ideal for 3D contoured surfaces and finishing cavities with smooth profiles.

• Tapered End Mills: Provide rigidity and access to narrow, deep cavities.

• Micro End Mills: Used for intricate, small-scale cavities in medical or electronics components.

• Indexable Insert Tools: Allow for quick tool changes during roughing of large cavities.

• Coated Tools: Titanium Nitride (TiN), Titanium Aluminum Nitride (TiAlN), or Diamond-Like Carbon (DLC) coatings extend tool life and reduce friction.

Proper tool length, diameter, and flute geometry are also carefully chosen to minimize deflection and ensure chip evacuation, especially in Deep Cavity Machining.

Machining Strategies for Cavity Manufacturing

1. Roughing

The initial phase removes bulk material quickly while avoiding excessive tool loads. Multi-axis CNC enables tool entry from optimal angles, reducing the need for secondary setups.

2. Semi-Finishing

Refines cavity geometry closer to final dimensions, preparing the surface for finishing with consistent material removal.

3. Finishing

Precision finishing passes use fine tools and optimized feed rates to achieve tight dimensional tolerances and superior surface finish.

4. Rest Machining

Targets leftover material from previous passes, typically in hard-to-reach areas, to ensure complete cavity definition.

Challenges in Multi-Axis Cavity Machining

Despite its advantages, multi-axis CNC cavity machining presents some challenges:

• Programming Complexity
  Creating effective toolpaths for multi-axis machines requires advanced software skills and experience.

• Collision Avoidance
  Complex geometries and multi-axis movements increase the risk of tool or spindle collisions without careful planning.

• Machine Calibration and Maintenance
  Precision depends on the machine’s mechanical accuracy and condition, demanding rigorous maintenance and calibration.

• Workholding
  Securely fixing parts with internal cavities while allowing tool access can be complicated.

• Cost and Training
  Multi-axis machines and skilled operators represent significant investments.

Industry Applications of Multi-Axis CNC Cavity Machining

1. Mold and Die Making

Multi-axis CNC is widely used to machine injection mold cavities, die-casting molds, and stamping dies requiring complex internal shapes and high surface quality.

2. Aerospace Components

Deep cavities in turbine blades, fuel nozzles, and structural parts are machined with multi-axis technology for performance and weight reduction.

3. Medical Devices

Intricate cavities in implants, surgical instruments, and diagnostic devices benefit from the precision and flexibility of multi-axis machining.

4. Automotive Parts

Cylinder heads, transmission housings, and other engine components often contain complex cavities requiring multi-axis machining for performance optimization.

5. Electronics and Micro-Mechanical Components

Miniaturized cavity features in connectors, sensors, and housings rely on multi-axis CNC for precise definition.

Quality Control in Multi-Axis Cavity Machining

Ensuring the quality of machined cavities involves:

• Coordinate Measuring Machines (CMMs): For verifying critical dimensions and geometries.

• Optical Scanning and Laser Profiling: Captures surface topography.

• In-Process Probing: Enables real-time monitoring of part geometry to minimize scrap.

• Surface Roughness Measurement: Ensures finish meets specifications, critical in mold cavities.

Future Trends in Multi-Axis Cavity Machining

• AI and Machine Learning: Automating toolpath optimization and predictive maintenance.

• Digital Twin Technology: Virtual simulation of machining processes to preempt issues.

• Hybrid Manufacturing: Combining additive manufacturing with multi-axis CNC for complex cavities.

• Enhanced Tool Materials: Development of new coatings and geometries for longer tool life and higher speeds.

• Robotics Integration: Automating loading/unloading to maximize multi-axis machine utilization.

Conclusion

Multi-axis CNC machining of cavities offers unparalleled precision, flexibility, and efficiency for complex internal features across various industries. Its ability to reduce setups, improve surface finish, and maintain tight tolerances makes it indispensable for modern manufacturing challenges.

Understanding the technologies, tooling, programming strategies, and quality control measures is essential to leveraging multi-axis CNC machining for superior cavity production. As technology advances, this field will continue to evolve, enabling even more intricate designs and higher productivity in component manufacturing.
