Multifunctional UAV Frame Parts: Enhancing Structural Efficiency and Customization in Modern Drone Engineering

Introduction

The rapid advancement of unmanned aerial vehicles (UAVs) has revolutionized industries such as agriculture, defense, logistics, infrastructure inspection, environmental monitoring, and cinematography. While many discussions focus on sensors, flight control, and propulsion systems, one of the most critical — yet often overlooked — components in drone construction is the UAV frame. Specifically, multifunctional UAV frame parts are transforming drone engineering by allowing for higher degrees of modularity, durability, and customization.

This article provides a detailed look into multifunctional UAV frame parts, their importance in drone design, their manufacturing techniques, and the numerous advantages they offer for diverse drone applications. Whether for a commercial quadcopter or an industrial fixed-wing UAV, the frame serves as the structural backbone — and multifunctionality takes this role to a whole new level.

What Are Multifunctional UAV Frame Parts?

Multifunctional UAV frame parts are structural components specifically designed to perform more than just a load-bearing or physical assembly function. These parts are optimized to provide support while also facilitating integration of electronic systems, payloads, thermal management, shock absorption, aerodynamic efficiency, and more.

Unlike traditional rigid drone frames that follow a fixed architecture, multifunctional parts often feature modular slots, pre-configured mounting points, cable routing channels, ventilation areas, and lightweight reinforcement zones. This allows drone builders to easily swap, customize, or expand components depending on mission requirements.

Material Selection: Strength Meets Lightweight Efficiency

Carbon Fiber

Carbon fiber is the most popular material for multifunctional UAV frames due to its exceptional strength-to-weight ratio, corrosion resistance, and rigidity. These properties enable lighter drones with longer flight times, greater maneuverability, and stronger resistance to vibration and external stresses.

Aluminum Alloy

Aerospace-grade aluminum is also widely used for frame parts that require machinability, impact resistance, and thermal dissipation capabilities. It is often used in hybrid designs where certain structural zones are made of aluminum for reinforcement, while the rest of the frame remains carbon-based for weight savings.

Engineering Plastics and Composites

For lower-cost or highly specialized drones, engineering plastics like nylon, ABS, or polycarbonate composites may be used. These materials offer flexibility, shock resistance, and cost-effective prototyping, making them ideal for educational or short-range drones.

Key Functional Features of Multifunctional Frame Parts

1. Modular Design Compatibility

Multifunctional frames allow for tool-free module mounting — from GPS units and cameras to LIDAR sensors and payload release systems. Integrated rails or slots can accept standard drone modules or customized brackets, making assembly and upgrades faster and easier.

2. Built-In Wiring Channels

Internal cable routing reduces clutter, improves airflow, and minimizes electromagnetic interference. These channels are often molded or machined directly into the arms or body of the drone frame.

3. Vibration Dampening Zones

Advanced frame parts may incorporate rubberized isolation mounts, shock-absorbing pads, or composite layering techniques to reduce vibration transmission to the sensors and flight controller, ensuring better data accuracy and smoother operation.

4. Heat Dissipation Elements

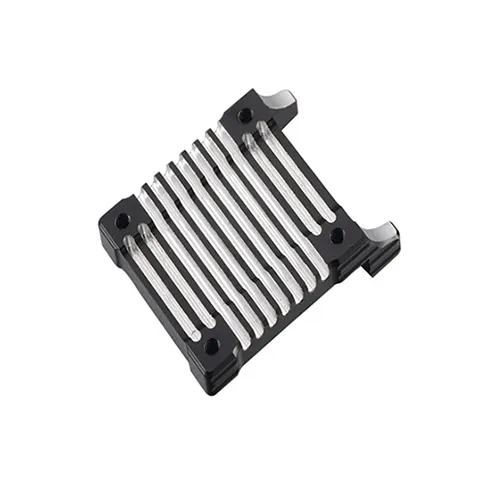

In high-performance drones, some frame parts are specifically designed to act as heat sinks, with integrated aluminum components or thermal conduction paths to dissipate heat from motors, ESCs, or battery systems.

5. Payload Adaptability

Multifunctional frame structures support variable payload configurations. With adjustable arms or modular central plates, users can change weight distribution and balance depending on whether the drone carries cameras, delivery containers, agricultural sprayers, or communication equipment.

Applications Across Industries

Aerial Photography and Videography

Drones used in cinematography often carry gimbals, 4K/8K cameras, and stabilization systems. Multifunctional frame parts ensure the drone remains balanced, quiet, and vibration-free for capturing crisp, stable footage even during complex maneuvers.

Agricultural UAVs

Agricultural drones frequently need to support spraying tanks, multispectral cameras, or seed dispensers. Multifunctional frame components allow quick reconfiguration between mapping and spraying tasks, significantly enhancing operational flexibility in the field.

Surveillance and Security

Law enforcement and private security operations require drones equipped with thermal cameras, night-vision systems, and long-range antennas. The frame must support these electronics while maintaining a stealthy profile and long flight duration.

Delivery Drones

Logistics UAVs designed for cargo delivery benefit from frames that can integrate payload bays, locking mechanisms, and drop-release arms. A multifunctional frame simplifies these design needs, while keeping weight distribution optimal.

Industrial Inspection

Drones used for inspecting pipelines, towers, and bridges must operate near metallic structures and in confined spaces. Multifunctional frames allow for compact folding, lightweight sensors, and obstacle-avoidance systems to be easily installed.

Processing and Manufacturing Techniques

CNC Machining

Many high-end multifunctional frame parts are made using CNC machining from solid carbon fiber plates or aluminum blocks. This method ensures tight tolerances, precise hole placement, and repeatability — essential for parts that must interlock or align with electronics.

Injection Molding

For plastic-based frames or inserts, injection molding allows high-volume, cost-effective production with consistent quality. Features like wire channels or cooling holes can be molded directly into the frame.

3D Printing

Additive manufacturing is increasingly used for rapid prototyping, custom fixtures, or low-volume frame parts. High-strength filaments like carbon fiber nylon or reinforced polycarbonate can achieve strong, lightweight results for experimental or short-run UAV builds.

Composite Lay-Up and Curing

For premium UAV frames, hand-laid or automated composite lay-up processes are used. Layers of carbon fiber cloth are impregnated with resin and cured under pressure, producing highly durable parts with optimized fiber orientation.

Design Considerations

Weight Distribution

A well-designed frame considers center of gravity, motor placement, and battery positioning. Multifunctional frame parts contribute by enabling balanced layouts even when equipment is mounted off-center.

Aerodynamics

Smooth contours, minimal surface disruptions, and aerodynamic cutouts reduce drag and increase efficiency. Some multifunctional frames are designed in wind tunnels to minimize turbulence around sensor areas.

Maintainability

Modular and multifunctional frames improve ease of maintenance. If a motor arm or payload bracket is damaged, it can often be swapped out without disassembling the entire drone.

Scalability

Multifunctional parts enable scalable platforms, where one frame design supports multiple variants — from small survey drones to larger cargo models — simply by altering a few components.

Benefits of Using Multifunctional UAV Frame Parts

1. Versatility

Multifunctional frame parts allow users to adapt a single drone platform to a wide range of applications. This reduces the need to purchase multiple UAVs for different purposes.

2. Simplified Assembly

Pre-machined mounting holes, channels, and guides reduce the complexity of installation, wiring, and adjustment. This streamlines production and minimizes assembly errors.

3. Improved Durability

The integration of structural and functional elements reduces part count and increases rigidity. This leads to longer life spans and lower maintenance costs.

4. Enhanced Performance

By optimizing airflow, weight balance, and vibration dampening, multifunctional frames contribute to longer flight times, smoother operation, and higher payload efficiency.

Challenges and Limitations

Despite their advantages, multifunctional UAV frame parts also present a few challenges:

Cost

Complex multifunctional frames may be more expensive to produce, especially if custom or low-volume. High-precision CNC machining and composite work increase production costs.

Complexity of Design

Integrating multiple functions into a single part requires advanced engineering and testing. Poorly designed parts can lead to heat buildup, structural weakness, or compatibility issues.

Repairability

If a multifunctional part fails or breaks, replacement can be more difficult or costly than with simple modular components, particularly when multiple systems rely on one integrated part.

Customization and OEM Services

Many drone manufacturers and commercial users opt for custom-designed multifunctional frame parts to meet their specific requirements. OEM/ODM providers offer services such as:

• Custom mold development

• Integrated cooling and ventilation solutions

• Payload-specific frame adaptations

• Branding and cosmetic design

• Quick-release latching systems

• Waterproof and dustproof enclosures

Whether producing 10 or 10,000 units, manufacturers benefit from frames designed specifically for their mission profiles, equipment dimensions, and operational environment.

Future Trends in UAV Frame Engineering

Smart Structural Integration

Next-generation frame parts will increasingly embed sensors, antennae, or power conductors within the structure itself, reducing wiring needs and increasing data reliability.

Bio-Inspired Designs

Engineers are exploring bio-mimicry to create frames that emulate the lightweight, flexible structures found in bird wings or insect bodies, leading to drones with superior agility and resilience.

Eco-Friendly Materials

With growing environmental awareness, some manufacturers are testing recyclable composites, biodegradable resins, or low-impact production processes for UAV frames.

AI-Driven Optimization

AI-assisted CAD tools can now simulate and evolve drone frame designs to automatically find the most efficient layout based on performance goals, material constraints, and real-world data.

Conclusion

Multifunctional UAV frame parts are redefining the way drones are built, maintained, and upgraded. By combining structural integrity with design adaptability, these components empower manufacturers and operators to create high-performance UAVs tailored to specific missions and environments.

Whether you're developing a professional camera drone, a high-altitude surveying UAV, or a delivery quadcopter, choosing the right multifunctional frame components can make a significant difference in durability, efficiency, and long-term value.

As drone technology continues to evolve, the role of smart, lightweight, and adaptable frame structures will only grow more essential — forming the backbone of innovation in aerial systems worldwide.
