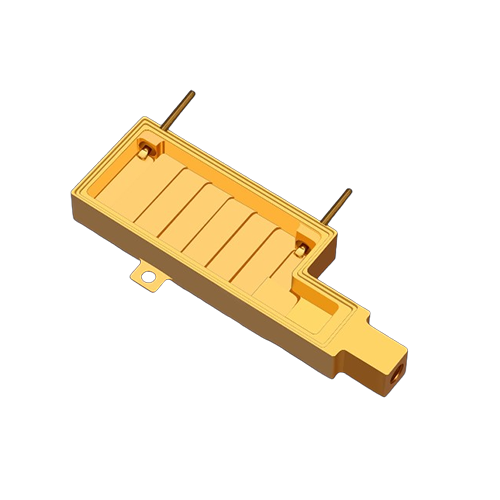

Precision Cavity Processing: The Backbone of High-Performance Engineering

Introduction

Precision cavity processing is a cornerstone technology in modern manufacturing, enabling the creation of complex, high-accuracy internal geometries essential for a wide range of industries. From injection molds and aerospace components to medical devices and electronic casings, cavity processing ensures that critical internal structures are manufactured with exacting precision, repeatability, and performance integrity.

This article offers a comprehensive overview of precision cavity processing, detailing the technology, processes, materials, applications, and benefits that make it indispensable in high-tech manufacturing environments. Whether you’re an OEM manufacturer, a product designer, or a procurement specialist, understanding the intricacies of cavity machining is crucial for delivering high-performance solutions that meet today’s engineering challenges.

What Is Precision Cavity Processing?

Precision cavity processing refers to the high-accuracy machining of internal or enclosed spaces within a component, typically achieved through CNC (Computer Numerical Control) machining. These cavities can be complex, multi-surfaced, and extremely tight in tolerance, often requiring advanced equipment and skilled engineering support.

Unlike surface or external component machining, cavity processing focuses on the internal structure of a part, which is frequently critical to its function. Examples include the mold cavity in injection molding, the combustion chamber in an engine, or the housing cavity in a medical device.

Core Technologies Used in Precision Cavity Processing

1. CNC Machining

CNC machining is the most common and reliable method used in precision cavity processing. It involves computer-guided tools that remove material from a workpiece to create a cavity with exact dimensions. Technologies used include:

• 3-Axis, 4-Axis, and 5-Axis CNC Machines: For multi-directional cutting and complex geometries.

• High-Speed Machining (HSM): Ensures faster production with fine detail.

• Multi-Spindle Machining: Increases efficiency for batch production.

2. Electrical Discharge Machining (EDM)

EDM is particularly valuable when processing hard-to-machine materials or creating intricate cavities with sharp corners and fine details. The two common types are:

• Sinker EDM: Ideal for deep cavity molds.

• Wire EDM: Used for precise cutting along a programmed path.

3. Laser and Ultrasonic Machining

For ultra-fine cavity structures, especially in microelectronics and biomedical applications, laser ablation and ultrasonic machining offer non-contact processing capabilities. These technologies are typically used for materials like ceramics or glass.

Materials Used in Cavity Processing

Precision cavity processing is applicable to a broad range of materials, depending on the functional requirement of the component:

• Aluminum: Lightweight and easily machinable; common in electronics and automotive applications.

• Steel and Tool Steels (e.g., P20, H13): Widely used for mold and die cavities due to their strength and durability.

• Titanium and Alloys: Used in aerospace and medical devices for their strength-to-weight ratio and corrosion resistance.

• Copper Alloys: Known for excellent thermal conductivity, ideal for heat-intensive cavity parts.

• Engineering Plastics: Such as PEEK, Delrin, or PTFE, for non-metallic components in medical and chemical industries.

Each material presents unique challenges for machining, including chip formation, heat generation, and surface finish. That’s why material-specific tooling and machining strategies are vital in achieving the desired precision and durability.

Applications of Precision Cavity Processing

1. Injection Molds and Die Making

Cavity machining is essential for creating injection molds used in mass-producing plastic parts. These cavities must be perfectly shaped to ensure uniformity, accuracy, and minimal material waste.

2. Aerospace Components

In aerospace engineering, internal cavities are often present in structural and mechanical components for weight reduction, airflow control, and housing electronic systems. These cavities must be machined to tight tolerances to guarantee safety and performance.

3. Medical Devices

Cavity processing enables the fabrication of intricate medical components such as surgical tool housings, diagnostic device enclosures, and implant structures. Biocompatibility and hygiene standards also require superior surface finishes and dimensional accuracy.

4. Automotive Engine Parts

Internal cavities in engine blocks, manifolds, and turbochargers must be processed with precision to ensure proper combustion, airflow, and cooling. Precision cavity processing ensures optimal engine efficiency and emissions control.

5. Consumer Electronics

Modern electronics rely on miniaturized components with highly specific internal cavities, such as smartphone housings, camera modules, and wearable tech. The precision of these cavities is essential for functionality, heat dissipation, and assembly compatibility.

Benefits of Precision Cavity Processing

1. Superior Dimensional Accuracy

The defining feature of precision cavity processing is its ability to achieve micron-level tolerances. This ensures proper fit and function, especially in assemblies where multiple components interact.

2. Design Flexibility

With multi-axis machining and advanced programming, even the most complex cavity geometries can be realized. This gives designers greater freedom to innovate without being limited by manufacturing constraints.

3. Repeatability and Consistency

Precision machining processes are highly repeatable, ensuring every unit meets the same specifications. This is critical in regulated industries such as aerospace and healthcare.

4. Improved Component Performance

Precisely machined cavities reduce friction, improve fluid dynamics, and enable better thermal management, leading to more efficient and longer-lasting products.

5. Reduced Assembly Time and Costs

When parts are machined to exact specifications, assembly is quicker and more reliable. This reduces labor costs and the risk of defects during integration.

Challenges in Cavity Machining and How They Are Overcome

Despite its advantages, cavity processing involves several technical challenges:

1. Tool Access and Clearance

Many cavity designs feature deep or narrow recesses that are difficult for tools to access. This is overcome with extended-reach tooling, 5-axis machining, and specially designed cutting paths.

2. Heat Buildup

Machining deep cavities generates heat that can affect material integrity and tooling life. Proper coolant application, optimized feed rates, and high-speed spindles help dissipate heat effectively.

3. Chip Evacuation

Chips accumulating inside cavities can cause surface defects and tool breakage. Modern machining setups employ high-pressure coolant systems and chip flushing mechanisms to ensure clean cavities.

4. Vibration and Chatter

Machining long or slender cavities can cause tool vibration. Using rigid setups, balanced tools, and dynamic feed control helps maintain stability and surface quality.

Best Practices in Precision Cavity Processing

To achieve optimal results, manufacturers should adopt the following best practices:

1. Design for Manufacturability (DFM)

Designers should collaborate with machinists to ensure the cavity geometry is feasible for the available tooling and equipment. Avoiding overly deep or sharp cavities reduces cost and risk.

2. Simulation and CAM Programming

Using CAD/CAM software with simulation capabilities helps optimize tool paths, reduce machining time, and avoid collisions or tool wear.

3. Tooling Optimization

High-quality, wear-resistant tools with proper coatings (e.g., TiAlN) extend tool life and maintain precision, especially in hard materials.

4. Precision Fixturing

Proper fixturing ensures part stability and accurate repeatability during the machining process. Custom fixtures may be needed for irregular cavity shapes.

5. Quality Inspection

CMM (Coordinate Measuring Machines), optical comparators, and laser scanners are used to verify dimensional accuracy and surface finish. Regular inspection ensures compliance with customer specifications.

The Future of Precision Cavity Processing

With continued advancements in automation, artificial intelligence, and additive-subtractive hybrid technologies, precision cavity processing is poised for even greater efficiency and innovation.

Emerging Trends:

• AI-Based Process Control: Adaptive machining using real-time sensor data and AI algorithms to improve speed and accuracy.

• Hybrid Manufacturing: Combining 3D printing with CNC machining to pre-form complex cavity shapes and finish them to high tolerances.

• Digital Twins and Smart Machining: Real-time digital models of parts and machines to monitor, simulate, and optimize the entire machining process.

Choosing the Right Partner for Precision Cavity Processing

Selecting an experienced and technologically advanced machining partner is crucial. Consider the following factors when choosing a precision cavity processing provider:

• Proven expertise in similar applications

• State-of-the-art equipment and software

• In-house engineering and quality control teams

• Material and process certifications (e.g., ISO, AS9100, FDA compliance)

• Capacity for prototyping and mass production

A reliable partner not only delivers precision parts but also adds value through design feedback, lead time optimization, and long-term supply chain support.

Conclusion

Precision cavity processing is more than just an advanced machining technique—it's an enabler of innovation across industries that demand complexity, accuracy, and reliability. As product designs become increasingly sophisticated and miniaturized, the role of high-Precision cavity machining becomes even more vital.

Manufacturers who invest in quality cavity processing benefit from improved product performance, reduced waste, and a competitive edge in their markets. Whether you are developing next-gen electronics, aerospace components, or high-precision molds, precision cavity processing provides the foundation for excellence in design and functionality.
