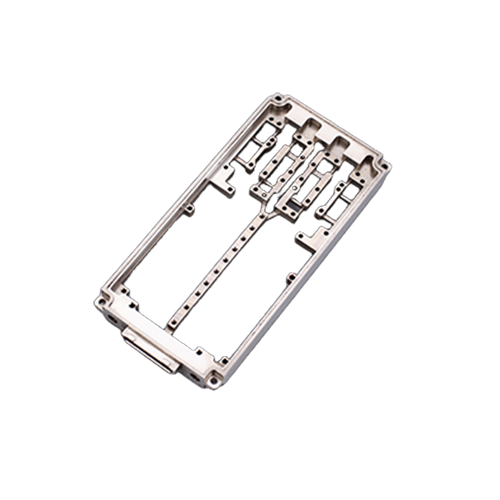

Precision Machining of Metal Cavities: Complete Guide to High-Accuracy Cavity Manufacturing

Introduction

In the ever-evolving world of modern manufacturing, precision machining of metal cavities plays a critical role in the production of high-performance components across multiple industries. From aerospace to medical devices, automotive to defense systems, the demand for exacting standards in dimensional tolerances and surface finishes is higher than ever. Precision cavity machining provides the foundation for injection molds, die-casting molds, internal enclosures, fluid channels, and structural elements in complex mechanical systems.

This article provides an in-depth look into the fundamentals, techniques, benefits, and industrial applications of precision metal cavity machining. It also explores the materials commonly used, the technologies that enable such high-accuracy processing, and the factors to consider when selecting a precision machining partner.

What is Precision Machining of Metal Cavities?

Precision machining of metal cavities refers to the advanced subtractive manufacturing processes used to shape, cut, and refine internal features within a metal block or component. These cavities may serve as housing for parts, fluid pathways, injection mold cavities, or structural recesses. Unlike external machining, cavity manufacturing requires intricate tool paths, optimized cutting strategies, and often, multi-axis CNC technology to reach complex geometries within confined spaces.

Typical cavity geometries may include:

• Deep pockets with high aspect ratios

• Undercuts and sharp internal corners

• Complex 3D surfaces

• Microchannels and miniature cavities

The precision aspect refers to tight tolerances (often within microns), fine surface finishes (e.g., Ra < 0.4 μm), and dimensional accuracy that aligns with critical design specifications.

Why Precision Matters in Cavity Machining

In modern engineering, tolerances often define the difference between a functional part and one that fails. Inaccuracies in cavity dimensions can lead to:

• Poor mold performance or leakage

• Misalignment during assembly

• Structural weaknesses or stress concentration

• Reduced efficiency in fluid dynamics

• Product rejection due to nonconformance

By using precision CNC machining and advanced finishing techniques, manufacturers can ensure the cavity meets exact design intent and integrates seamlessly with mating components or functions.

Common Metals Used for Cavity Machining

The choice of metal depends heavily on the application, required hardness, thermal properties, and corrosion resistance. Common materials include:

1. Tool Steel (e.g., P20, H13, S7)

Used widely in injection mold cavities, die-casting molds, and stamping dies due to their high hardness, toughness, and thermal fatigue resistance.

2. Stainless Steel (e.g., 304, 316, 420)

Ideal for applications requiring corrosion resistance, such as medical components and fluid handling systems.

3. Aluminum Alloys (e.g., 6061, 7075)

Preferred for lightweight applications or prototypes. Easier to machine with good thermal properties.

4. Titanium

Used in aerospace and medical parts due to its high strength-to-weight ratio and corrosion resistance.

5. Copper and Alloys (e.g., BeCu)

Common in high-conductivity applications like cooling channels or RF systems.

Each material presents unique challenges, such as tool wear, chip removal, or thermal expansion, which must be managed during machining.

Key Technologies in Precision Cavity Machining

Precision cavity machining is a synergy of advanced machines, software, and skilled operation. Core technologies include:

1. multi-axis CNC machining

5-axis or 6-axis CNC machines provide the freedom to approach cavities from multiple angles without repositioning the workpiece. This is critical for internal contours, undercuts, and steep walls.

2. High-Speed Milling

Utilizes spindles running at high RPM with fine-tipped tools for detailed finishing. Essential for producing smooth surfaces and accurate contours in smaller cavities.

3. Electrical Discharge Machining (EDM)

Wire EDM and sinker EDM are commonly used for cavities with sharp corners, hard materials, or fine detail. EDM is especially useful when conventional cutting is not feasible.

4. Micro-Machining

For cavities requiring extremely small dimensions, such as those in medical implants or microfluidic devices. Tools often measure in microns.

5. Coordinate Measuring Machines (CMMs)

Used for dimensional inspection to ensure cavities meet strict tolerances. Optical scanners and touch-probe systems validate internal geometry.

Surface Finishing in Cavity Machining

The surface finish of a cavity affects not only aesthetics but also functionality, especially in mold-making or fluid-dynamic parts. Finishing techniques include:

• Polishing – Mechanical or hand polishing to remove tool marks and achieve mirror surfaces.

• Lapping – Used for achieving very flat, smooth surfaces.

• EDM Finish Control – Surface roughness can be managed via spark settings in EDM.

• Anodizing, Passivation or Coating – For corrosion protection or wear resistance.

Applications of Precision-Machined Metal Cavities

Precision cavity machining is integral to the function of components in various industries:

1. Injection Molds

Molds used in plastics, rubber, and silicone molding require highly accurate cavities to shape final products. The quality of the cavity determines part surface finish, consistency, and ejection quality.

2. Die-Casting Tools

Die-cast molds for aluminum, zinc, or magnesium components rely on cavities that can withstand high-pressure molten metal and repeated thermal cycling.

3. Medical Devices

Implantable components, surgical instruments, and diagnostic equipment often involve micro-cavities machined in stainless steel or titanium.

4. Aerospace Components

High-performance aerospace parts often contain weight-reduction pockets, cooling cavities, and sensor housings, requiring extreme accuracy and durability.

5. Heat Exchangers and Microchannels

Metal blocks with intricate fluidic pathways used in heat transfer systems, lab-on-chip devices, and fuel cells demand sub-millimeter cavity tolerances.

6. RF and Microwave Systems

Cavities in waveguides, enclosures, and connectors require tight tolerance to prevent signal loss or interference.

Advantages of CNC Precision Cavity Machining

• High Accuracy – Delivers tight tolerances often below ±0.005mm.

• Repeatability – Ensures consistent results over long production runs.

• Complex Geometry – Enables the manufacture of intricate shapes not feasible with manual methods.

• Material Flexibility – Supports a wide range of ferrous and non-ferrous metals.

• Efficient Turnaround – Modern CNC systems offer fast setup and processing, even for low-volume orders.

Factors to Consider When Selecting a Precision Machining Provider

Choosing the right machining partner is crucial to ensure part performance and project success. Key considerations include:

• Machine Capability – Do they offer 5-axis CNC, EDM, and micro-machining capabilities?

• Experience with Complex Cavities – Prior experience in your industry or with similar geometries?

• Material Handling Expertise – Proficiency in machining the specific metal you require?

• Quality Assurance – Do they offer CMM inspection, surface finish reports, and dimensional validation?

• Customization and Prototyping – Can they assist in early-stage prototyping and design iteration?

• Delivery and Lead Time – Can they deliver within your required timeframe without compromising quality?

Challenges in Machining Metal Cavities

While technology has advanced, cavity machining still presents unique challenges:

• Tool Deflection and Vibration – Particularly in deep cavities or micro-features.

• Chip Evacuation – Removal of chips from deep recesses without damaging the part.

• Thermal Expansion – Heat generation during high-speed machining can affect precision.

• Tool Access – Reaching internal surfaces often requires custom tool paths and tool holders.

• Workholding – Securing the workpiece without interference to cavity geometry.

These challenges require a mix of simulation software, precision tooling, real-time monitoring, and experienced operators.

Future Trends in Precision Cavity Machining

The field is continuously evolving with advancements such as:

• Hybrid Manufacturing – Combining additive and subtractive methods for internal cavities.

• AI-Powered Tool Path Optimization – Reducing cycle times and improving tool life.

• Nano-Precision Machining – For the manufacture of micro-electromechanical systems (MEMS).

• Advanced Cutting Tools – Diamond-coated tools and high-rigidity holders improving surface quality.

• Digital Twin and Simulation – Virtual modeling of cavity machining before actual production.

Conclusion

Precision machining of metal cavities is a cornerstone of modern manufacturing, enabling the production of parts that are lightweight, compact, and functionally superior. Whether it's the intricate mold cavities for injection molding or the microchannels in a heat exchanger, the demand for accuracy and reliability continues to grow.

By leveraging cutting-edge CNC technology, high-performance materials, and advanced inspection systems, manufacturers can meet the highest industry standards. Selecting a qualified and experienced precision machining provider ensures your cavities meet critical tolerances, extend part life, and support product innovation.

For industries that cannot afford inaccuracies—from aerospace to medical—the investment in High-Precision Cavity Machining is not just a quality assurance measure, but a competitive necessity.
