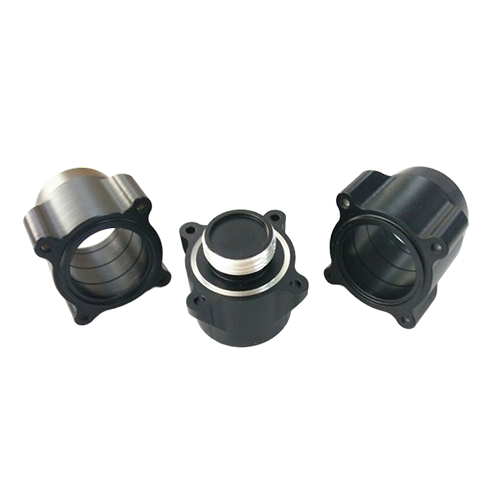

Precision UAV Parts CNC Machining: Essential for High-Performance Drone Manufacturing

Introduction

Unmanned Aerial Vehicles (UAVs), commonly known as drones, have become pivotal tools in industries ranging from defense and agriculture to cinematography and infrastructure inspection. Central to the success of these drones are their precision-engineered components that ensure reliability, stability, and performance. Among the manufacturing processes used, precision CNC machining stands out as a cornerstone technology for producing high-quality UAV parts with exceptional accuracy and repeatability.

Precision UAV parts CNC machining involves the use of computer-controlled cutting tools to shape metals, plastics, and composite materials into complex, tight-tolerance components vital to drone functionality. This process ensures that parts such as frames, motor mounts, brackets, and housings meet stringent specifications essential for optimal flight performance.

This article delves into the significance of precision CNC machining in UAV manufacturing, exploring its processes, material considerations, design implications, industry applications, and future trends.

1. Understanding Precision CNC Machining in UAV Parts Manufacturing

CNC (Computer Numerical Control) machining refers to automated subtractive manufacturing processes that use programmed instructions to control machine tools. In UAV parts manufacturing, precision CNC machining enables the production of components with micron-level accuracy and consistent quality.

Key features include:

• Multi-axis machining for complex geometries

• High repeatability for batch production

• Superior surface finish reducing aerodynamic drag

• Compatibility with diverse materials such as aluminum alloys, titanium, and engineering plastics

Such capabilities make CNC machining indispensable for UAV parts that require structural strength, lightweight properties, and tight integration with electronics and propulsion systems.

2. Why Precision Matters for UAV Components

UAV components must satisfy rigorous mechanical, environmental, and operational demands:

• Flight Stability: Precision ensures balanced and vibration-free frames and mounts.

• Weight Efficiency: Accurate machining enables material optimization to reduce weight without compromising strength.

• Fit and Assembly: Tight tolerances facilitate seamless integration with motors, sensors, and control electronics.

• Durability: Precision finishes reduce stress concentrators, extending part lifespan.

• Safety and Compliance: Meeting aerospace and defense standards requires exact specifications.

Imprecise parts can cause misalignment, increased wear, or flight instability, potentially leading to mission failure or accidents.

3. Common UAV Parts Manufactured via Precision CNC Machining

The scope of UAV components produced using CNC machining spans structural, mechanical, and functional parts:

a. Drone Frames and Chassis

Machined aluminum or titanium frames provide the backbone for UAVs, offering rigidity and lightweight design.

b. Motor Mounts and Brackets

These components require precise holes and interfaces to ensure proper motor alignment and vibration dampening.

c. Landing Gear Components

Durable, machined parts protect the UAV during takeoff and landing while minimizing weight.

d. Gimbal and Camera Mounts

Precision-machined mounts support payloads and camera stabilization systems critical for aerial imaging.

e. Electronic Housings and Enclosures

Machined cases safeguard sensitive electronics from environmental damage.

f. Propeller Hubs and Spacers

High-precision hubs maintain propeller balance and reduce mechanical stresses.

4. Materials Used in UAV CNC Machined Parts

Material choice is a critical factor in CNC machining, affecting weight, strength, durability, and cost.

a. Aluminum Alloys

Aluminum 6061 and 7075 are popular due to their excellent strength-to-weight ratio, corrosion resistance, and machinability. Anodizing can enhance surface durability and aesthetics.

b. Titanium

Titanium alloys offer superior strength, corrosion resistance, and heat tolerance. They are favored in military or aerospace-grade UAVs but require specialized machining techniques.

c. Engineering Plastics

Materials like POM (Delrin), nylon, and polycarbonate are used for lightweight, non-structural components. These plastics provide impact resistance and electrical insulation.

d. Composite Materials

While primarily fabricated through layup or molding, some UAV composite parts may be CNC-machined for finishing or custom fitting.

Each material demands specific tooling, cutting speeds, and cooling strategies to maintain part integrity.

5. CNC Machining Techniques Used for UAV Parts

a. 3-Axis and 5-Axis Milling

Multi-axis milling machines enable machining on multiple surfaces without repositioning. Five-axis CNC machines are particularly effective for complex UAV parts with contoured surfaces and undercuts.

b. Turning and Lathe Operations

For cylindrical components such as shafts and spacers, CNC turning provides precision shaping.

c. Electrical Discharge Machining (EDM)

Used for hard-to-machine materials and complex internal geometries, EDM offers precise cuts without mechanical stress.

d. High-Speed Machining (HSM)

HSM improves surface finishes and reduces machining time, beneficial for large production runs.

6. Design Considerations for CNC Machined UAV Parts

Good design practices maximize manufacturability and performance:

• Tolerance Specification: Defining critical tolerances ensures functional fit and reliability.

• Material Selection: Designing parts with machinable materials optimizes production.

• Weight Reduction: Incorporating pockets and ribs reduces weight without sacrificing strength.

• Assembly Features: Including precise holes, slots, and threads eases integration.

• Thermal and Vibration Management: Designing for heat dissipation and damping enhances UAV stability.

Collaboration between design engineers and machinists during early stages helps identify manufacturing constraints.

7. Advantages of Precision CNC Machining in UAV Manufacturing

a. Accuracy and Consistency

CNC machining delivers repeatable accuracy, vital for batch production.

b. Versatility

Suitable for a wide range of materials and part complexities.

c. Speed and Efficiency

Rapid prototyping and quick adjustments streamline development cycles.

d. Cost-Effectiveness

While setup costs exist, CNC machining lowers per-part costs in mid-to-high volumes.

e. Surface Finish Quality

High-quality finishes improve aerodynamics and reduce post-processing needs.

8. Quality Assurance and Inspection

To maintain stringent quality standards, UAV parts undergo:

• Dimensional inspection using CMM and laser scanning.

• Surface finish checks for roughness and defects.

• Material property verification through hardness and tensile tests.

• Non-destructive testing for cracks or voids.

These inspections ensure parts meet aerospace-grade requirements and customer specifications.

9. Industry Applications of CNC Machined UAV Parts

a. Defense and Aerospace

High-reliability UAVs used in reconnaissance, surveillance, and tactical operations require precision components.

b. Agriculture

Machined UAV frames and mounts support sensors for crop monitoring and pesticide spraying.

c. Cinematography

Lightweight, vibration-dampened mounts and frames ensure stable aerial footage.

d. Infrastructure Inspection

UAVs equipped with durable machined parts inspect bridges, pipelines, and power lines safely.

10. Future Trends in UAV CNC machining

a. Automation and Robotics Integration

Robotic arms and automated loading systems increase machining efficiency.

b. Hybrid Manufacturing

Combining additive manufacturing with CNC finishing allows complex, lightweight designs.

c. AI-Driven CAM Optimization

Artificial intelligence optimizes tool paths and reduces machining time.

d. Advanced Materials

Development of new alloys and composites expands machining capabilities.

Conclusion

Precision UAV parts CNC machining plays an indispensable role in drone manufacturing, ensuring the production of high-quality, reliable, and lightweight components essential for UAV performance. By leveraging advanced machining technologies, material expertise, and design collaboration, manufacturers can meet the demanding specifications of diverse UAV applications, from commercial photography to defense.

As the UAV market continues to expand and innovate, precision CNC machining will remain a critical enabler of drone advancement, delivering parts that combine strength, accuracy, and efficiency.
