Small Turbine Engine: A Complete Guide to Compact Power and Precision Engineering

Introduction

Small turbine engines have become essential components across a wide range of industries, from unmanned aerial vehicles (UAVs) and model aircraft to experimental propulsion systems and compact power generation. Combining high power-to-weight ratio, operational reliability, and minimal mechanical complexity, these engines offer unmatched advantages where size, performance, and efficiency must coexist. As demand grows for miniaturized propulsion solutions, understanding the fundamentals, advantages, applications, and manufacturing techniques of small turbine engines becomes increasingly important.

This article explores the world of small turbine engines in depth, from their design principles and performance characteristics to their uses in various sectors and key considerations in precision manufacturing.

What is a Small Turbine Engine?

A small turbine engine is a scaled-down version of a traditional gas turbine, optimized for compact spaces and lightweight applications. It typically includes a compressor, combustion chamber, turbine section, and sometimes a reduction gearbox or thrust nozzle. These engines operate on the Brayton cycle, where air is compressed, mixed with fuel, ignited, and then expanded through a turbine to generate thrust or rotational energy.

Small turbine engines are generally used in the power range of several hundred watts to a few kilowatts. Despite their small size, they can deliver significant power output, often surpassing piston engines of similar weight. Their high-speed rotation and minimal vibration also make them suitable for applications that require precision, efficiency, and stability.

Key Features of Small Turbine Engines

1. Compact Design

The most distinguishing feature of a small turbine engine is its size. It is designed to fit into limited spaces without compromising on performance. This makes it ideal for drones, remote-controlled jets, and portable power systems.

2. High Power-to-Weight Ratio

Compared to internal combustion engines of similar output, small turbines offer a superior power-to-weight ratio. This is especially important in aerospace applications where every gram matters.

3. Smooth Operation

With fewer moving parts and balanced high-speed rotors, these engines exhibit low vibration and noise levels, enhancing mechanical stability and reducing wear.

4. Fuel Flexibility

Many small turbines can run on a variety of fuels including kerosene, diesel, and jet fuel, offering operational flexibility in diverse environments.

5. Quick Throttle Response

Turbine engines can ramp up power quickly, making them responsive to dynamic operational demands such as altitude changes, acceleration, or directional shifts.

Applications of Small Turbine Engines

1. Unmanned Aerial Vehicles (UAVs)

Small turbine engines are widely used in UAVs, especially in high-speed drones requiring long-range flight and endurance. Their lightweight design and high thrust output make them ideal for military surveillance, cargo drones, and aerial mapping systems.

2. Model Jet Aircraft

A favorite among aviation hobbyists, small turbine engines power scale-model aircraft with realistic jet performance. These engines bring authenticity and thrill to the world of remote-controlled aviation.

3. Micro Power Generation

In remote or off-grid locations, small turbines can be used as compact power generators, particularly when integrated with recuperators or heat recovery systems for enhanced efficiency.

4. Experimental Propulsion

Researchers and developers often use small turbine engines in experimental aerospace systems, including hybrid electric propulsion and high-altitude testbeds.

5. Educational and Demonstration Platforms

Engineering institutions use small turbines as practical tools for teaching thermodynamics, fluid mechanics, and mechanical design. Their visible operation makes them suitable for demonstrating core engineering principles.

Design and Working Principles

Small turbine engines operate using the Brayton cycle, and their internal layout generally includes:

• Compressor: Draws in ambient air and compresses it to high pressure.

• Combustion Chamber: Injects and burns fuel, raising the temperature and energy of the compressed air.

• Turbine: Extracts energy from the high-speed exhaust gases to drive the compressor and, in some cases, generate thrust.

• Exhaust Nozzle or Gearbox: Depending on whether the engine is used for propulsion or shaft power, the output is directed through a nozzle or gear system.

High rotational speeds (often exceeding 60,000 RPM) and precise airflow control are essential for efficient operation.

Precision Manufacturing in Small Turbine Engines

The performance and reliability of small turbine engines depend heavily on the precision of their components. Key areas of focus in manufacturing include:

1. Impeller and Turbine Blade Machining

CNC machining is critical for manufacturing the intricate geometries of impellers and turbine blades. These components must withstand extreme centrifugal forces and thermal stress, demanding high-strength materials and micron-level tolerances.

2. Combustion Chamber Fabrication

The combustion chamber must be both lightweight and capable of handling high-temperature combustion. Advanced alloys, thermal barrier coatings, and high-precision welding techniques are commonly used.

3. Shaft and Bearing Systems

The shaft must be perfectly balanced to support high-speed rotation. Bearings—often ceramic or hybrid—must provide minimal friction while enduring high temperatures.

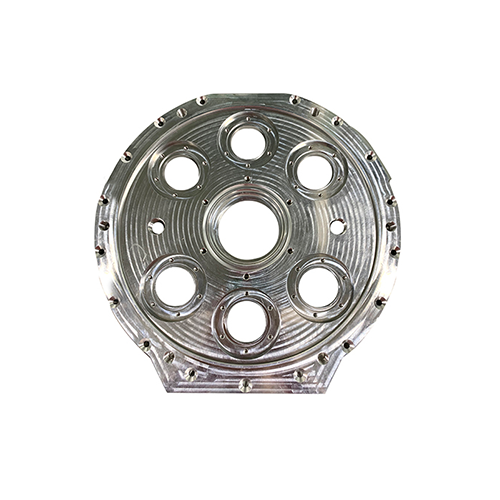

4. Housing and Casing Precision

The engine casing must align perfectly to ensure aerodynamic efficiency and mechanical integrity. CNC-milled housings made from aluminum or titanium alloys are widely used.

5. Thermal and Stress Simulation

Before final production, simulation tools are used to model airflow, combustion, and thermal expansion. These ensure that every component can operate reliably under dynamic conditions.

Advantages over Conventional Engines

Compared to reciprocating engines (piston-based), small turbines offer the following benefits:

• Fewer Moving Parts: Resulting in reduced mechanical wear and maintenance.

• Continuous Combustion: Offers smoother and more efficient energy conversion.

• Higher RPM Range: Enables more responsive and powerful performance.

• Scalability: Easier to scale down while maintaining efficiency.

• Less Vibration: Ideal for sensitive applications like surveillance drones and scientific instrumentation.

Challenges and Limitations

While small turbine engines offer numerous advantages, they also face several challenges:

• Manufacturing Cost: Precision parts and high-grade materials increase the cost of production.

• Fuel Efficiency: At low power settings, turbine engines tend to be less fuel-efficient than piston engines.

• Thermal Management: Managing high temperatures in a compact structure requires advanced cooling techniques.

• Noise Levels: Turbine engines can produce significant high-frequency noise unless adequately muffled.

Continued innovations in materials, 3D printing, and hybrid systems are helping to overcome these limitations.

Trends and Innovations

1. Additive Manufacturing (3D Printing)

Complex turbine geometries are increasingly manufactured using metal 3D printing. This enables lightweight structures with optimized internal cooling paths and faster prototyping cycles.

2. Hybrid Propulsion Systems

Small turbines are being integrated with electric motors and batteries to form hybrid propulsion systems. This extends operational range and improves fuel efficiency.

3. Thermal Coatings and Materials

New heat-resistant materials and advanced coatings are extending the life of turbine components and enabling higher operating temperatures, thereby boosting performance.

4. Digital Twin Technology

By creating digital replicas of turbine systems, engineers can simulate performance and conduct predictive maintenance, leading to improved reliability and lifecycle management.

Environmental Considerations

Although small turbine engines emit fewer particulates than diesel engines, their high exhaust temperatures and NOx emissions are a concern. Manufacturers are addressing this through:

• Lean-burn combustors

• Exhaust treatment systems

• Electrified startups to reduce idling emissions

• Use of sustainable aviation fuels (SAF)

These efforts contribute to cleaner and more sustainable turbine operations, especially in aviation applications.

Future Outlook

The future of small turbine engines is bright, driven by growing demand for UAVs, portable power systems, and experimental aerospace projects. As technology advances in materials science, thermal management, and digital control systems, these engines are expected to become more efficient, quieter, and affordable.

In particular, their role in hybrid propulsion, urban air mobility, and unmanned cargo delivery will likely expand. For manufacturers and developers, focusing on precision engineering and innovation will be key to capitalizing on this growing market.

Conclusion

Small turbine engines represent the convergence of compact design, high-performance engineering, and cutting-edge materials. Their application across industries—from aerospace to energy—reflects their versatility and capability. While challenges such as cost and thermal management persist, continued innovation is steadily expanding their potential.

As drone technology, electrification, and micro-power systems evolve, small turbine engines will remain an indispensable part of the propulsion ecosystem—driving innovation, enhancing mobility, and powering the future.
